protective relays
THYTRONIC protective relays solution provides complete power system protection from any type of faults and system distress condition, making secure, reliable and efficient the power grid operation.
Generator Protection

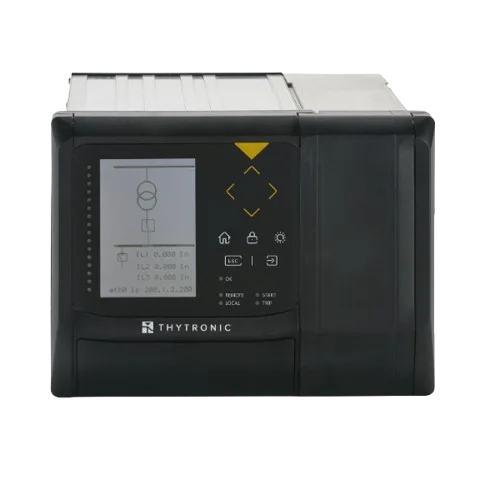

XMR-D is a part of XMORE platform, the complete range of IEDs for Medium Voltage application including feeder, motor, generator, transformer and capacitor bank; it is the multifunction and comprehensive Motor and Generator protection relay, including Differential element. Thanks to Hardware and Software modularity XMR-D is flexible and scalable in term of application and performance.
Enhancements to protect and analyze power system operation in disturbance conditions:
- Up to 12 analogue inputs
- 32 sample for cycle Oscillography fault recording
- 64 sample for cycle measurement for accuracy of protection element
- Up to 0,5 class Power and Energy measurement
Enhanced Time synchronization solution for SOE recording:
- Precision Time Protocol PTP according to IEC1588
- SNTP
Communication Security through redundancy protocol and Cyber Security package
- High available Seamless Redundancy support HSR
- Parallel Redundancy Protocol support PRP
- Rapid Spanning Tree Protocol RSTP
- Advanced built in Cyber Security
Widely implemented in Smart Grid and Substation Automation System:
- IEC61850 Ed.1/Ed.2
- IEC 870-5-103
- Modbus (Serial/TCP)
- DNP3 (Serial/TCP)
Standard Protective & Control Elements
- Unintentional energisation at standstill protection - 50/27
- Calculated Residual Overcurrent - 50N/51N (Comp)
- Phase rotation direction check - 47
- Positive Sequence Undervoltage - 27V1
- Phase overcurrent side H and side L - 50/51
- Overfrequency - 81O
- Residual Overvoltage -59N
- VT Supervision -74VT
- Negative sequence overcurrent - 46LT
- Ground directional overcurrent - 67N
- Directional earth fault overcurrent - 67N(Comp)
- Double slope biased differential for Generator/ Motor/Transformer -87M-87G-87T
- Overvoltage - 59
- CT Supervision - 74CT
- Under Voltage - 27
- Directional reactive overpower -32Q
- Directional active underpower - 37P
- Directional reactive underpower - 37Q
- Out of Step Protection - 78
- Directional active overpower - 32P
- Maximum number of startings (Restart inhibition) - 66
- Low impedance restricted earth fault -64REF
- Under Current - 37
- Frequency rate of change - 81R
- Breaker Failure - BF
- Maximum number of startings (Restart inhibition) - 66
- Loss of Field - 40
- Automatic Recloser - 79
- Maximum Residual Overcurrent - 50N/51N(1)
- Negative /positive sequence current ratio - I2/I1
- Thermal Image Motor/Generator - 49MG
- Negative sequence overvoltage - 59V2
- Under Impedence - 21
- Minimum Power Factor - 55
- Trip Circuit Supervision - 74TCS
- Overexicitation - 24
- Maximum Residual Overcurrent - 50N/51N(2)
- Negative sequence overcurrent Motor/Generator - 46MG
- Vector Jump - DPHI
- Locked Rotor - 51LR(48)/14
- Directional Phase Overcurrent - 67
- 100% stator earth-fault - 27H - 59H
- Thermal Image Transformer - 49LT
- 100% stator earth-fault - 27H - 59H
Widely implemented in Smart Grid and Substation Automation System:
- Thermal with Pt100 Probes -26
- Arc flash
- Rotor Earth fault -64F
